Booster in-line

C8R-X1, C8P-X1

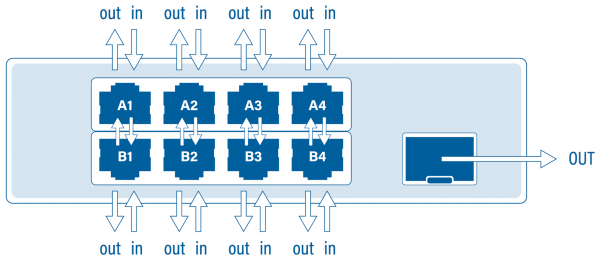

  1. Make up to 4 in-line connections between network locations via the Ax and Bx ports, using appropriate Ethernet cables (e.g. Cat5e).
  2. Connect the output port to your monitoring equipment, using a 1G or 10G SFP module.
  3. Supply power to the device.

Note: The output port sends all in-line streams as one single aggregated stream to the monitoring equipment.
