Statistics

The Statistics page displays specific statistics counters, either globally, or filtered by the interfaces selected.

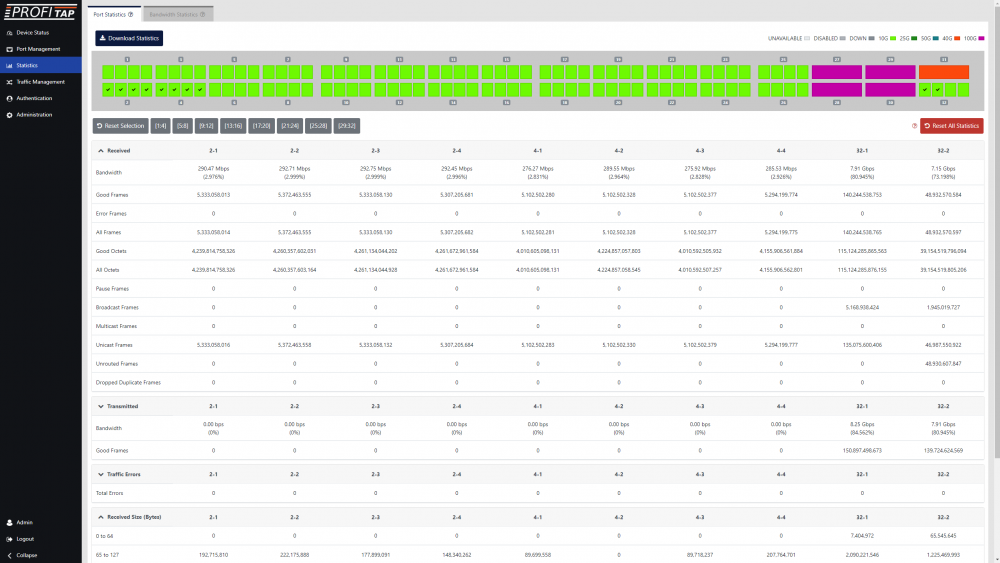

The Ports Statistics tab displays traffic statistics for the selected interface(s). Clicking one or more interfaces will result in visually check-marking them and in adding new column(s) with their respective data stats. The Reset Statistics button will perform a reset of the hardware counters used in all the ports. Statistics for the select ports can be downloaded via the Download Statistics button.

The Bandwidth Statistics tab allows the user to compare the Tx and Rx bandwidth usage for each port, using bandwidth charts. The user can select the desired ports on the panel and see the bandwidth values plotted on the two charts on the screen. The value can be displayed in three different time ranges: one, three, and six hours.
