Interfaces and LED behavior

1, 2	RJ45 Ethernet port A and B
3	START/STOP/RESET button
4, 5, 6, 7	Network status and activity LEDs
8	Status LED
9	Capture LED
10	12 VDC power input (12V model)
10	24-48 VDC power input (24V model)
11	RJ45 Management port
12	2 x USB 3.0 port type A

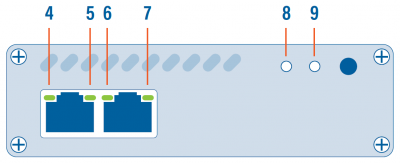

LED state	Meaning
4 and/or 7 steady green	The port is linked.
4 and/or 7 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5 steady green 6 off	Capture interface operating at 10 Mbps speed.
5 blinking green 6 off	Capture interface is initializing.
5 off 6 steady green	Capture interface operating at 100 Mbps speed.
5 off 6 blinking green	Capture interface firmware is corrupted.
5+6 steady green	Capture interface operating at 1 Gbps speed.
5+6 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5+6 alternating blinking	Capture interface cannot find a common speed between the connected devices.
8 blinking orange 9 off	Booting
8 green 9 green	Running
8 green 9 blinking green	Capturing
8 blinking orange and green 9 blinking orange and green	Updating
8 blinking red 9 blinking red	Hardware failure
8 blinking orange 9 blinking orange	Factory reset
8 blinking green 9 off	Shutting down
8 off 9 off	Shutdown completed

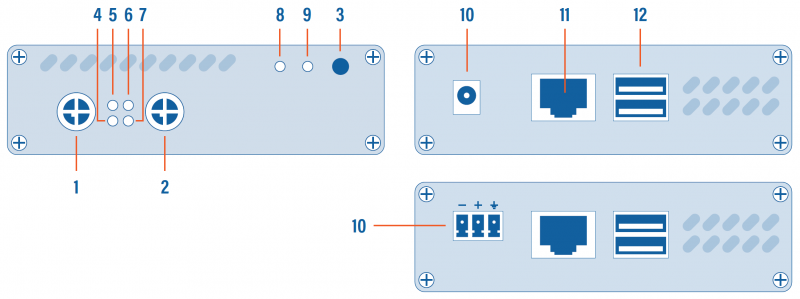

1, 2	M12 female 8 positions X-coded Ethernet port A and B
3	START/STOP/RESET button
4, 5, 6, 7	Network status and activity LEDs
8	Status LED
9	Capture LED
10	12 VDC power input (12V model)
10	24-48 VDC power input (24V model)
11	RJ45 Management port
12	2 x USB 3.0 port type A

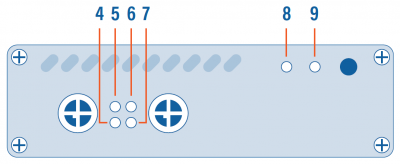

LED state	Meaning
4 and/or 7 steady green	The port is linked.
4 and/or 7 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5 steady green 6 off	Capture interface operating at 10 Mbps speed.
5 blinking green 6 off	Capture interface is initializing.
5 off 6 steady green	Capture interface operating at 100 Mbps speed.
5 off 6 blinking green	Capture interface firmware is corrupted.
5+6 steady green	Capture interface operating at 1 Gbps speed.
5+6 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5+6 alternating blinking	Capture interface cannot find a common speed between the connected devices.
8 blinking orange 9 off	Booting
8 green 9 green	Running
8 green 9 blinking green	Capturing
8 blinking orange and green 9 blinking orange and green	Updating
8 blinking red 9 blinking red	Hardware failure
8 blinking orange 9 blinking orange	Factory reset
8 blinking green 9 off	Shutting down
8 off 9 off	Shutdown completed

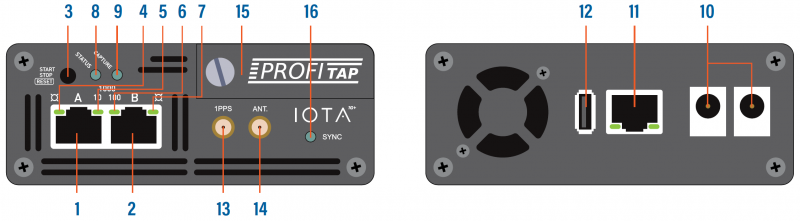

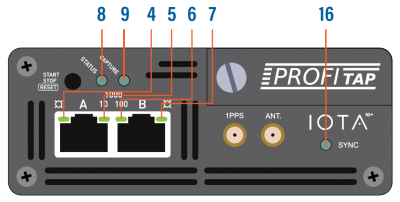

1, 2	RJ45 Ethernet port A and B
3	START/STOP/RESET button
4, 5, 6, 7	Network status and activity LEDs
8	Status LED
9	Capture LED
10	12 VDC redundant power inputs (12V model)
11	RJ45 Management port (PoE+)
12	USB 3.0 port type A
13	SMA female connector (PPS in/out)
14	SMA female connector (GPS/GLONASS antenna)
15	Removable SSD
16	Sync LED

LED state	Meaning
4 and/or 7 steady green	The port is linked.
4 and/or 7 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5 steady green 6 off	Capture interface operating at 10 Mbps speed.
5 blinking green 6 off	Capture interface is initializing.
5 off 6 steady green	Capture interface operating at 100 Mbps speed.
5 off 6 blinking green	Capture interface firmware is corrupted.
5+6 steady green	Capture interface operating at 1 Gbps speed.
5+6 blinking green	The port is linked and has RX/TX activity (traffic is passing through).
5+6 alternating blinking	Capture interface cannot find a common speed between the connected devices.
8 blinking orange 9 off	Booting
8 green 9 green	Running
8 green 9 blinking green	Capturing
8 blinking orange and green 9 blinking orange and green	Updating
8 blinking red 9 blinking red	Hardware failure
8 blinking orange 9 blinking orange	Factory reset
8 blinking green 9 off	Shutting down
8 off 9 off	Shutdown completed
16 on	Internal timestamp synchronized with the configured time system (GPS, NTP, etc.) with an accuracy of ± 16 ns.

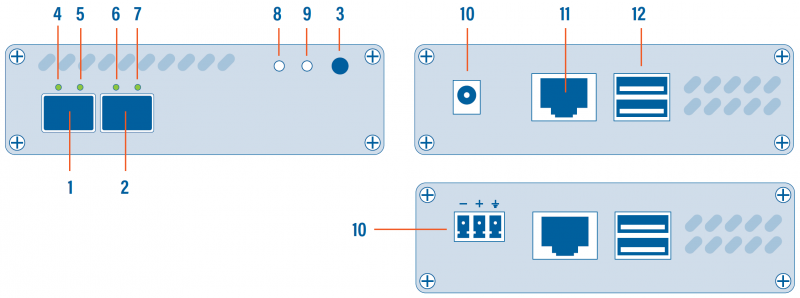

1, 2	SFP+ port A and B
3	START/STOP/RESET button
4, 5, 6, 7	SFP and network status and activity LEDs
8	Status LED
9	Capture LED
10	12 VDC power input (12V model)
10	24-48 VDC power input (24V model)
11	RJ45 Management port
12	2 x USB 3.0 port type A

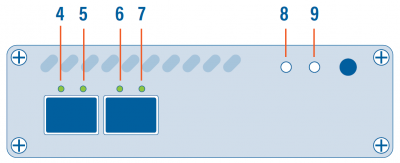

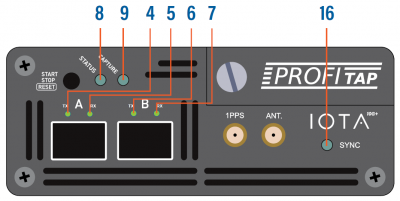

LED state	Meaning
4+5 and/or 6+7 orange	No SFP module present or detected.
4+5 and/or 6+7 green slow blink	No link.
4+5 and/or 6+7 red	Connect additional power.
5 and/or 7 green	SPAN mode, link up.
5 and/or 7 green fast blink	SPAN mode, traffic activity.
4+5+6+7 green	In-Line mode, link up.
4+5+6+7 green fast blink	In-Line mode, traffic activity.
8 blinking orange 9 off	Booting
8 green 9 green	Running
8 green 9 blinking green	Capturing
8 blinking orange and green 9 blinking orange and green	Updating
8 blinking red 9 blinking red	Hardware failure
8 blinking orange 9 blinking orange	Factory reset
8 blinking green 9 off	Shutting down
8 off 9 off	Shutdown completed

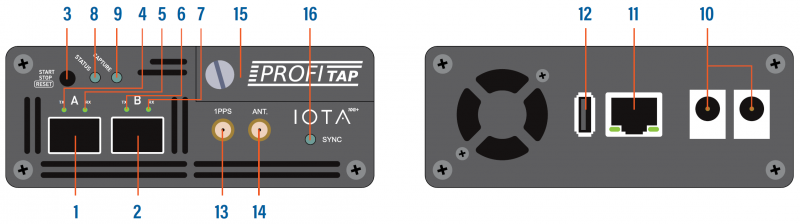

1, 2	SFP+ port A and B
3	START/STOP/RESET button
4, 5, 6, 7	SFP and network status and activity LEDs
8	Status LED
9	Capture LED
10	12 VDC power input (12V model)
10	24-48 VDC power input (24V model)
11	RJ45 Management port (PoE+)
12	USB 3.0 port type A
13	SMA female connector (PPS in/out)
14	SMA female connector (GPS/GLONASS antenna)
15	Removable SSD
16	Sync LED

LED state	Meaning
4+5 and/or 6+7 orange	No SFP module present or detected.
4+5 and/or 6+7 green slow blink	No link.
4+5 and/or 6+7 red	Connect additional power.
5 and/or 7 green	SPAN mode, link up.
5 and/or 7 green fast blink	SPAN mode, traffic activity.
4+5+6+7 green	In-Line mode, link up.
4+5+6+7 green fast blink	In-Line mode, traffic activity.
8 blinking orange 9 off	Booting
8 green 9 green	Running
8 green 9 blinking green	Capturing
8 blinking orange and green 9 blinking orange and green	Updating
8 blinking red 9 blinking red	Hardware failure
8 blinking orange 9 blinking orange	Factory reset
8 blinking green 9 off	Shutting down
8 off 9 off	Shutdown completed
16 on	Internal timestamp synchronized with the configured time system (GPS, NTP, etc.) with an accuracy of ± 16 ns.
