Interfaces and LED behavior

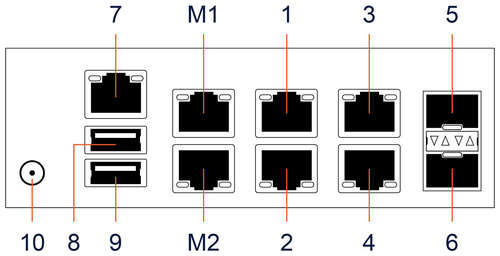

IOTA 10 CORE interfaces
| M1, M2 | Management ports 1 and 2 (RJ45 Ethernet) |
|---|---|
| 1, 2 | 100M/1G RJ45 capture ports |
| 3, 4 | 1/10G RJ45 capture ports |
| 5, 6 | 10G SFP+ capture ports |
| 7 | IPMI port (RJ45 Ethernet) |
| 8, 9 | USB 3.0 ports |
| 10 | 12 VDC power input |

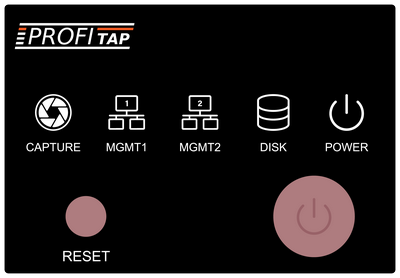

IOTA 10 CORE LED and button behavior
| LEDs and buttons | Description |
|---|---|
| Capture LED blinking | Device is capturing from one or more interfaces. |
| Capture LED blinking three times | Factory reset has been triggered. |
| Capture LED off | No capture is currently taking place. |
| Mgmt1 LED blinking | Activity on management port M1. |
| Mgmt2 LED blinking | Activity on management port M2. |
| Disk LED blinking | Disk activity. |
| Power LED on | Device is powered on. |
| Reset button | Reboots the unit. |
| Power button | Turns the unit on or off. |
