Replication copper TAPs

C1-1G-RG2

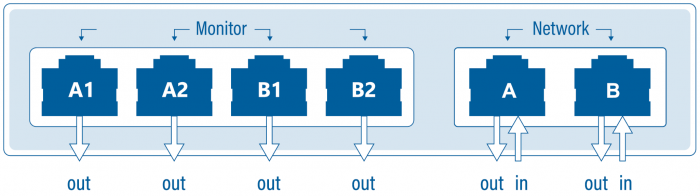

1. Make the in-line connection between 2 network locations through the Network A and B ports, using appropriate Ethernet cables (e.g. Cat5e).
2. Connect the Monitor ports to your monitoring equipment, using appropriate Ethernet cables (e.g. Cat5e).
3. Supply power to the device.

Note: Monitor A1 and A2 each output a copy of the traffic received on Network A, while Monitor B1 and B2 each output a copy of the traffic received on Network B.
